Product Description

If you want an idea of where Onkyo’s home theater packages are heading, the HT-S5200 is well worth checking out. Like previous Onkyo 7.1-channel receiver/speaker packages, the HT-S5200 delivers reassuringly hefty amounts of power and all-round performance. And in line with other recent offerings, it’s also perfectly suited for high-definition entertainment in the home: 1080p video takes center stage from sources such as Blu-ray Disc, DVD, HD broadcasting, and gaming. The emphasis is still on Onkyo’s audio prowess, so the HT-S5200 is equipped with three groundbreaking Audyssey technologies that will give you the edge in terms of surround sound. It also features some exciting innovations from Onkyo: a dedicated port that connects the iPod via the Dock for the iPod and DSP modes specifically designed for gaming.

---

Product Details

• Amazon Sales Rank: #33 in Television
• Color: Black
• Brand: Onkyo
• Model: HTS5100B
• Dimensions: 31.25" h x 30.69" w x 20.25" l, 90.80 pounds

Features

• 130 Watts per Channel at 6 Ohms, 1 kHz, 1%
• DTS-ES™ Discrete/Matrix, DTS Neo:6®, DTS 96/24™, Dolby® Digital EX™, Dolby® Pro Logic® IIx Decoding
• 4 HDMI™ Inputs and 1 Output for Video, HDMI Pass-Thru*1 (Version 1.3 Compatible with 1080p, Deep Color™, and x.v.Color™)
• Dedicated Port for Single-Cable Connection of the Dock for the iPod
• SIRIUS™ Satellite Radio Ready

From the Manufacturer

The Onkyo HT-5200 7.1-Channel Home Entertainment Receiver/Speaker - Package Stacked with Options and Versatility

If you want an idea of where Onkyo's home theater packages are heading, the HT-S5200 is well worth checking out. Like previous Onkyo 7.1-channel receiver/speaker packages, the HT-S5200 delivers reassuringly hefty amounts of power and all-round performance. And in line with other recent offerings, it's also perfectly suited for high-definition entertainment in the home.

Includes four HDMI video inputs

The 1080p video takes center stage from sources such as Blu-ray Disc, DVD, HD broadcasting, and gaming. The emphasis is still on Onkyo's audio prowess, so the HT-S5200 is equipped with three groundbreaking Audyssey technologies that will give you the edge in terms of surround sound. It also features some exciting innovations from Onkyo: a dedicated port that connects the iPod via the Dock for the iPod and DSP modes specifically designed for gaming.

A Suite of Audyssey Technologies for the Ideal Listening Environment

The HT-5200 has three Audyssey technologies to help create the most suitable listening environment for your home. The first is Audyssey 2EQ™ for Room Acoustic Correction. The HT-5200 uses Audyssey 2EQ to counter distortion created by walls, furniture, and other objects. This technology detects speaker distance, and then sets levels, delays, and crossovers, while also measuring room acoustics. Compared to one-position room correction systems, Audyssey 2EQ covers a much wider listening area. Moreover, it corrects problems in both frequency response and time domain (where most of the problems lie) across the entire listening area. The results are immediately obvious--a clear, well-balanced, and natural sound.

The second is Audyssey Dynamic Volume™ control. This technology allows you to set the volume level that you want and keep it there, without having to constantly adjust it. By anticipating sudden spikes and dips in the audio soundtrack and compensating for them in real time, Audyssey Dynamic Volume ensures consistent volume levels, regardless of the content you're enjoying. Thanks to Audyssey Dynamic Volume, quiet dialogue is easier to pick up, loud passages retain their impact, and commercials are less intrusive.

The third is Audyssey Dynamic EQ™ for Loudness Correction. In professional sound studios, music and movies are recorded at reference levels far louder than what is typical for home listening. As a result, when you play audio content at a low volume on a standard home theater receiver, the bass disappears, voices change in timbre, and the surround soundstage loses definition. To counteract this audio deterioration, Audyssey Dynamic EQ continuously adjusts frequency response and the surround soundstage loses definition. To counteract this audio deterioration, Audyssey Dynamic EQ continuously adjusts frequency response and surround levels to produce the ideal balance for a given volume level.

Features a proprietary docking station for an iPod

HDMI™ Pass-Thru* for Connecting up to Four Video Sources for Output to a High-Definition Display

The HT-S5200 takes up to four HDMI video inputs from sources such as Blu-ray Disc players, DVD players, gaming consoles, and set-top boxes, and delivers the output to a compatible high-definition display. Video is passed in its native resolution--right up to 1080p--from Blu-ray Disc, PlayStation® games, or HD broadcasts.

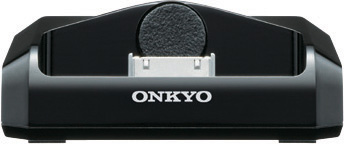

Dedicated Port for Single-Cable Connection of the Dock for the iPod

The HT-S5200 features a proprietary port, located on the rear side of the unit, to which you can connect Onkyo's Dock for the iPod. The dock sends both video and audio signals through a single cable. Earlier versions of Onkyo's Dock for the iPod can be connected via our Remote Interactive (RI) system. Now you can experience your music in your surround sound system and listen to it like never before.

Music Optimizer™ and Convenient Front-Panel Audio Input for Portable Devices

An audio input on the front panel of the HT-S5200 enables you to connect your iPod or other MP3 player directly to the system. The HT-S5200's onboard Music Optimizer technology then works to enhance the quality of your compressed digital music files by compensating for bit information lost at higher frequencies.

Four Game Modes for More Thrilling Action

A new addition to the Onkyo home theater, these four gaming modes create an experience with more realism and impact. You can select from Rock, Sports, Action, or Role Playing Game (RPG) modes to match your gaming content. Don't just play your games--live them, breathe them, feel them.

SIRIUS™ Satellite Radio Ready*

By using the SIRIUS input on the A/V receiver's rear, it's possible to enjoy SIRIUS Satellite Radio. SIRIUS brings access to over 130 digital-quality channels, including 69 channels of 100% commercial free music, plus exclusive channels of sports, news, talk, entertainment, traffic, weather, and data.
*SIRIUS requires separate purchase of subscription, compatible tuner, and antenna.

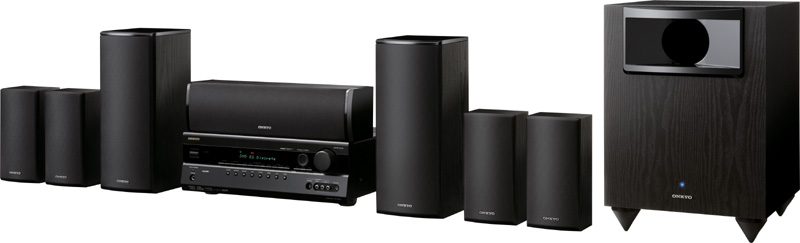

Includes four surround speakers, two left/right speakers, one center channel speaker and a subwoofer speaker (Shown in black)

---

Technical Specifications

Amplifier Section

• Power output Front L/R: 130 W/Ch (6 ohms, 1 kHz, 1 channel driven)
• Power output Center: 130 W (6 ohms, 1 kHz, 1 channel driven)
• Power output Surround L/R: 130 W/Ch (6 ohms, 1 kHz, 1 channel driven)
• Power output Subwoofer: 130 W (6 ohms, 1 kHz, 1 channel driven)
• Dynamic Power: 180 W (3 ohms), 160 W (4 ohms), 100 W (8 ohms)
• THD (Total Harmonic Distortion): 0.08% (1 W Output)
• Damping Factor: 60 (Front, 1 kHz, 8 ohms)
• Input Sensitivity and Impedance: 200 mV/47 k-ohms (Line)
• Output Level and Impedance: 200 mV/470 ohms (Rec out)
• Frequency Response: 5 Hz–100 kHz/+1 dB, -3 dB (Direct mode)
• Signal-to-Noise Ratio: 106 dB (Line, IHF-A)
• Speaker Impedance: 6 ohms–16 ohms
• Dimensions (W x H x D): 17.13 x 5.94 x 12.94 inches
• Weight: 19.4 lbs

Video Section

• Component Video Frequency Response: 5 Hz–50 MHz, -3 dB

Speaker Section

• Speaker Type: Front: 2-way, bass reflex, Center: Dual-drive, 2-way, Surround: Full-range, bass reflex, Subwoofer: Bass reflex, powered
• Drivers: Front: 5-inch OMF diaphragm cone woofer and 1-inch balanced-dome tweeter, Center: 3.25-inch cone woofer x 2 and 1-inch balanced-dome tweeter, Surround: 3.25-inch cone, Subwoofer: 10-inch cone
• Frequency Response: Front: 55 Hz–50 kHz, Center: 65 Hz-50 kHz, Surround: 80 Hz–20 kHz, Subwoofer: 25 Hz–150 Hz
• Max. Input Power: Front/Center/Surround: 120 W, Subwoofer: 130 W
• Nominal Impedance: Front/Center/Surround/Subwoofer 6 ohms
• Dimensions (W x H x D): Front 6.13 x 15 x 6.69 inches, Center 16.94 x 4.5 x 4.75 inches, Surround 4.5 x 9.06 x 3.75 inches, Subwoofer 12.5 x 18.13 x 15.69 inches
• Weight: Front: 6 lbs, Center: 5.5 lbs, Surround: 2.2 lbs, Subwoofer: 24 bs

General Section

• Tuning Frequency Range: FM 87.5 MHz–107.9 MHz, AM 530 kHz–1,710 kHz
• FM/AM Preset Memory: 40 stations
• Power Supply: AC 120 V~, 60 Hz
• Power Consumption: 4.9 A

---

---

Customer Reviews

Great item for budget home theater! Much better than others.
Got this for a little more than $400. Works great. Easy installation. Many options for a cheap model. I bought the Sony system earlier, about $700 and had to return them. Very happy with the Onkyo. I play my 360 and PS3 on it and the sound is crystal clear and deep bass! Can notice all 7.1 channels! Make sure you use the optical sound. Highly recommended for this price range, probably up to the $600 or even $700.

So far very good.
Just setting up this thing. It is a breeze. No problem setting up, made for people like me (not a sound connoisseur, but listens to a lot of music and have a need for 1080p on my games, videos).

I will use the multi-room controls a lot.

[...]
The sound is really nice, it has an active bass, and the surround works super nice. Watching Star Wars /LoTR and other movies that use sound effects suddenly give the movies more depth and another dimension. Music is super nice, it really handles both deep and high notes really well.

I have yet to get with all the features on it, and will update this review.
I have connected my PS3, with HDMI, and optical sound.
Working on the xbox, and tv sound out to see which is the better. Thinking xbox with the optical and tv with regular sound as I don't watch too much TV...we'll see.

I programmed the remote to control my TV too, and so no need for tons of remotes. I can also (sort of) control the iPod from the remote.

The only thing I would like, would be up-scaling instead of pass-through HDMI, it would make the set-up so much easier, but I have a PS3 that gives full 1080p blu ray, and xbox that upscales DVD's so I felt I did not need it. If the ht-s6200 was out when I bought this, I probably would have opted for it (depending on price..it is announced at $599 now), but amazon only made it available for purchase AFTER I got this. the ht-s5200 had some nice features over the ht-s6100 (game settings, and some other effects), and it is $300 cheaper.

Active base is awesome. Makes for a nice effect whenever something explodes on film :-) The late night settings also works.

TIP: Get your cables on Amazon, they cost a fraction of best buy (I mean comparable HDMI cables are $60 at Best buy and $2 on amazon.

So far, you'd be hard pressed to find a better system in this price range...IMO. I am super happy right now.

Best bang for your buck, boom in a box!!
The delivery guy says to my wife, "Surprise!" I guess I should of told her first. Aside from the fallout from that altercation I can safely say that this sound system is a phenomenal value for what you pay. It took me a little while to set it up, but that was only because I had to rearrange the living room to accommodate for the size of my t.v. and homemade stand. Movies and games from my PS3 sound fantastic. Great bass levels for music as well. If you are looking for a good system that costs less than the name brands like Sony or Samsung, get this system and you wont regret it!!!
