Product Description

20-INCH BROADCAST STUDIO MONITOR DVI-D (HDMI compatible) for HD-DVD / Blu-Ray Disc playback, 1:1 Scaling Mode for pixel-to-pixel 720p display, Desk stand included, VESA standard mounting options

Product Details

• Brand: JVC
• Model: DT-V20L1DU
• Dimensions: 20.00" h x 13.00" w x 22.00" l, 27.00 pounds

Features

• Rack-mountable AC/DC 16:9 flat panel studio monitor
• HD-SDI / SDI auto-sensing inputs with time-code display
• Embedded audio with up to 12-channel audio level metering
• DVI-D (HDMI compatible) for HD-DVD / Blu-Ray disc playback
• 1:1 Scaling Mode or pixel-to-pixel 1080p and 720p display

From the Manufacturer

Designed for studio, mobile and field applications, the DT-V20L1DU features a high-resolution LCD panel with advanced signal processing optimized HDTV display. Built-in HD-SDI, Y-Pb-Pr, Composite and DVI-D interfaces provide wide connectivity to broadcast and studio sources.

Superior scaling and de-interlacing, combined 10-bit 1080p processing ensure the highest picture quality. The monitor is equipped with traditional rotary knobs that control picture and sound. It has area markers, blue check and timecode display making it an ideal choice for a variety of studio, field and OB van applications.

JVC DT-V20L1DU Highlights

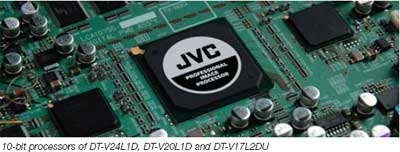

Exclusive JVC image processing technology We’ve taken our leading-edge image processing technology and refined it to meet the requirements of critical broadcast and production HD users. A 10-bit processor is used in the DT-V20L1DU to deliver true professional performance, without over-processing. DT-V20L1DU produces natural clear images at all times -- even with fast-moving content. JVC’s advanced technology also eliminates many of the problems inherent in digital circuits, such as diagonal jaggies, block noise, and mosquito noise, while our exclusive enhancer technology provides accurate image outline correction. The end result is clearly visible on the screen with smoother resolution and crisper, sharper images. High-performance liquid crystal panels Wide viewing angles, high brightness, excellent focus and contrast performance set JVC’s industry-leading DT-V series of monitors apart from the competition. In addition, these advanced LCD monitors feature minimal delay between input signal and image display, thus ensuring faithful picture reproduction.

Color temperature setting Three color temperature settings are provided: 9,300-degrees K, 6,500-degrees K, and one user-defined setting.

Compatible with multiple HD/SD formats Compatible with multiple HD/SD formats The DT-V20L1DU is equipped with a full set of HD-compatible inputs. These include two auto-sensing HD/SD inputs with switched output, composite and component inputs. In addition, an HDCP-compatible DVI input is provided for PC connection.

Cinema mode For film applications, a unique Cinema mode provides optimized I/P conversion with 24 frame signals, in addition to the NORMAL (frame-based) and FIELD (field-based) modes.

Faithful color reproduction Matrix parameters are set in response to the actual HD or SD input signal. This makes it possible to accurately reproduce colors in strict conformity with ITU standards without having to process color signals. A chromatic range equivalent to EBU 100%, ensures color reproduction that is virtually identical to the original.

Gamma calibration Each monitor undergoes an extensive gamma calibration before it is shipped from the factory. Extra attention to detail ensures extremely precise gray scale characteristics.

1:1 pixel scanning function The 1:1 function facilitates pixel-by-pixel display. Input signals are displayed in their original format without scaling. The DT-V20L1DU (with overscan) can display every single pixel in the an original 1080i or 720p image.

Traditional front panel operation Anyone used to working with a CRT monitor will find the front panel rotary controls immediately familiar. These convenient controls let you quickly adjust picture and volume, as well as providing fast, direct access to a variety of functions, thus enhancing productivity in any environment.

Various video production functions A variety of functions have been provided to support creative video production. These include: area markers compatible with different aspect ratios (4:3, 14:9, 13:9, 2.35:1*1, 1.85:1*1, and 1.66:1*1), safe area markers (80%-100%; variable in steps of 1%), 16:9 / 4:3 aspect ratio switching, screen check functions that display R,G and B signals separately, and two-color tally lamps (red and green).

HD/SD SDI terminals With two built-in multi-format auto-switching HD/SD-SDI inputs, the DT-V20L1DU can handle most types of HD signals. Terminals are gold plated to prevent corrosion and signal loss. Embedded SDI audio is also supported.

No sync action The power-saving screen mode (activated when no input signal is detected) can be set to Suspend, Grey Background, or Off.

Status display Status information is displayed in the blank area above the active picture display. (except with PC signals) The use of 16:10 panels allows status information to be displayed with no loss of picture elements.

Time code display function The display of time code embedded in SDI signals is turned on or off with this function. Compact, all-in-one design Thanks to a slim, space-saving, all-in-one design, these monitors can be installed easily on any wall, shelf, or rack and in a variety of locations such as an OB van, studio control room, or editing studio.

VESA-compliant design VESA-standard screw holes of 100 mm x 100 mm pitch are provided. The rigidly constructed rear panel makes the DT-V20L1DU eminently suitable for wall mounting.

Rack-mounted design The DT-V20L1DU can be installed in a standard EIA rack with a height of 7U and a width of 17-inches.

Adjustable stand The metal table-top stand can be tilted up or down by 6-degrees for easier viewing and more flexible installation. When height is restricted the monitor frame can also be installed directly on a shelf or platform simply by removing the stand.

Dual power source The DT-V20L1DU can be powered by a standard AC connection or by 12--17V DC batteries (Anton Bauer, IDX or PAG) installed via bracket on the rear panel. This dual power system makes this monitor extremely versatile, enabling HD image review in the field.

Control and connector protection structure To prevent any damage to the control panel, it is protected by a speaker grille and reinforced edge design. The rear panel connectors are protected by a concave design. This slim, efficient construction is both practical and safe.

Metal rear cabinets Rugged metal rear cabinets provide excellent heat radiation and greater durability.

Protective screen (option) To keep the LCD panel clean and protect it from scratches or damage, optional screen protection filters are available. These protection filters also suppress reflections when the panels are under bright light.

Convenient grip handle The DT-V20L1DU is fitted with a convenient self-retracting grip handle for easy mobility.
