Product Description

Tripp Lite¿s ECO550UPS standby GREEN UPS offers complete protection from blackouts, brownouts and transient surges. Supports GREEN energy savings via built-in ¿ECO¿ outlets that automatically power off unused computer accessories like printers or multi-media speakers when the computer is not in use. Full load efficiency rating of 99% also offers energy-savings and cooler operation by limiting UPS power consumption to only 3 watts! Eco-friendly design meets strict RoHS environmental standards. Provides uninterrupted transition to battery-derived AC output during brownouts and power failures with enough runtime to save and shutdown connected equipment without data loss. Offers complete protection in an ultra-compact desktop or wall-mountable housing. Includes 4 battery supported outlets for computer, monitor and two vital system peripheral, plus 4 additional surge suppression-only outlets for accessories not requiring battery support. Three of the surge-only outlets are designated ¿ECO¿ outlets that can be configured to automatically power-off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. PowerAlert software is available via free download from www.tripplite.com. USB cable included. Built-in single line RJ11 phone suppression protects modem, fax machine, cordless phone or other accessories with a dialup/DSL phone connection. Built-in audible alarm and front panel LEDs offer continuous status information regarding line and battery power operation. 550VA / 300 watt power handling ability supports entry-level PC systems for up to 17 minutes during power fail conditions. 2 year warranty. $100,000 connected equipment insurance (USA, Puerto Rico, & Canada Only).

---

Product Details

• Color: Black
• Brand: Tripp Lite
• Model: ECO550UPS
• Platform: Windows
• Format: CD
• Original language: English
• Number of items: 1
• Dimensions: 4.10" h x 13.00" w x 8.00" l, 7.10 pounds

Features

• Protects PCs and peripherals from downtime, damage and data loss due to power problems
• Saves up to $50 on annual energy costs
• 99% power efficiency saves energy around the clock
• Energy-saving ECO surge outlets automatically turn off idle equipment
• Free PowerAlert software for safe unattended computer shutdown and file saves

From the Manufacturer

Efficient and Effective

Now you can protect your valuable electronics, save money on your utility bill and be kind to the planet! Tripp Lite’s environmentally friendly ECO550UPS standby UPS system is the ideal green solution for complete protection against blackouts, brownouts and power surges. Its 550VA/300-watt power handling capacity supports entry-level PC systems for up to 17 minutes during blackouts. With a power efficiency rating of 99%, the ECO550UPS offers energy savings plus cooler operation by limiting UPS power consumption to less than 3 watts!

The ECO550UPS provides 4 battery-supported outlets for computer, monitor and other vital system peripherals, plus 4 surge suppression-only outlets for accessories not requiring battery support. Three of the surge-only outlets are ECO outlets that can be configured to automatically power off unused computer accessories like printers or multi-media speakers when the computer is not in use. Built-in single-line RJ11 jacks protect a modem, fax machine or phone. One USB port (USB cable included) plus free PowerAlert software (available via Web download) enables unattended system shutdown without data loss in the case of extended power failure. The ECO550UPS comes with $100,000 Ultimate Lifetime Insurance coverage for connected equipment (USA/Canada only) and a 3-year product warranty.

---

Surge Protection, Battery Support, and Energy Savings in One Unit

Protect your electronics and save money on electricity

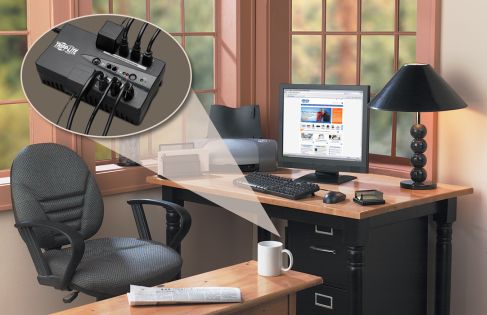

Ideal for Protection of Home or Office PCs and Peripherals

With reliable battery backup, tel/modem jacks and an HID-compliant USB port, the ECO550UPS offers a complete power protection solution for a wide range of home and office electronics. The ECO550UPS features a split-outlet design with 8 total AC outlets: 4 to provide battery backup support and surge protection for computers, monitors and other critical components; 4 to provide surge protection only for peripherals such as printers and scanners.

Energy-Saving Design: Save up to $50 (Insert ECO logo here)

The ECO550UPS includes 3 surge-only outlets with ECO capability that can be configured to power down idle peripherals automatically when the computer is not in use. This UPS also features a full-load efficiency rating of 99% that limits UPS power consumption to less than 3 watts with only 4 BTU/hr. of heat output. Thanks to these energy-efficient design features, the ECO550UPS helps to reduce your carbon footprint while providing annual energy savings of up to $50.

Reliable Battery Backup

UPS battery backup support enables you to work through short power failures, and provides time to save files and perform an orderly system shutdown in case of a prolonged blackout. The ECO550UPS features an internal battery that provides 3.5 min. of battery support for a full load (300 watts), 10 min. for a half-load (150 watts) or 17 min. for a single PC. During normal operation, incoming utility power keeps the UPS battery fully charged so that backup power will always be available if needed.

Surge Suppression

A sudden power surge or spike can damage or destroy electronic components and wipe out irreplaceable data. The ECO550UPS features a 420-joule surge suppression rating to protect all connected components and the data they contain.

EMI/RFI Line Noise Filtering

Various electrical and radio sources can cause disruptive interference on the AC line. This line noise is a common cause of incremental hardware damage, data corruption and audio/video performance problems. The ECO550UPS incorporates technology that filters out disruptive line noise, preventing it from affecting your equipment.

Signal Line Protection

The ECO550UPS includes one set of tel/DSL (RJ11) jacks to protect a standard dialup/DSL phone connection (user supplies RJ11 phone cable).

USB Port and Free PowerAlert Software

The ECO550UPS features an HID-compliant USB port (USB cable included). Used with Tripp Lite’s free PowerAlert software (available from Tripp Lite as a Web download), this USB port enables safe unattended system shutdown and file saves in the event of a prolonged power failure. The USB port also enables integration with built-in power management and auto shutdown features of Windows and Mac OS X.

Environmentally Responsible

The ECO550UPS features a green-conscious design that conserves electricity, saves money and reduces CO2 emissions. This UPS system is manufactured in compliance with strict RoHS (Reduction of Hazardous Substances) guidelines to minimize the use of hazardous materials, and its replaceable internal battery is 100% recyclable.

Ultimate Peace of Mind

The ECO550UPS comes with $100,000 Ultimate Lifetime Insurance coverage for connected equipment (USA/Canada only) and a 3-year product warranty.

---

---

Customer Reviews

Very Pleased
Bought about 3 months ago after many power surges. Does what it says, easy to install. Manual should have come with product. No problems so far. Like having 8 outlets, automatic power off outlets and ability to monitor backup power on PC.

Battery backup
I read a convincing and information packed ad for Tripp Lite in PC World that prompted me to purchase it. Also a family member stressed that I should have one in case of an outage. My former surge protector had its limitations so it was time for a change. The eco550UPS comes with 8 outlets, 4 for surge protection and the other 4 are energy savers for peripheral hardware. Supposedly using the "550" will save one about $50 per year in energy costs based on 3 hours of computer use daily. The manual is poorly worded and flimsy. For example, the manual gives very brief and confusing directions for the installation of the UBS wire. In addition, the manual has to be downloaded from the Tripp Lite website, which I find to be an annoying inconvenienceTripp Lite ECO550UPS 550VA Energy Efficient UPS System - Black. Another unique feature of the "550" is the "Power Alert Console" software (downloaded from the website) which tracks disruptions in your system. My power alert does not work and crashes every time I try to use it. I called, at my expense, Tripp Lite, but, after several suggestions from its tech staff the issue was still unresolved. Tripp Lite dismissed is as a Windows issue and they could not help me. If one has problems with the unit, you either call tech support at your expenses or send an email. It takes two days for a response so depending on the nature of your problem that can be a very long time to wait. Once one receives a reply, the tech staff will correspond with you most of that day to resolve the issue, which is what they did for me. Another important point is that the unit is an actual battery, which means that once the unit "expires", you have to buy another one. Tech stated that the unit, depending on use and care, should last 3 to 5 years. I was under the impression that you simply put a new battery into the unit to recharge it but it does not work that way. Despite these shortcomings, I'd recommend it. It's easy to install, fits on my desk, provides protection for my system, eliminate crashes from sudden electrical surges, and will alert me if there is an overload or the battery is weak. Tech support is there, albeit somewhat slower than anticipated.
